How can I set a static IP address or allocate a dedicated IP Address for my Atria Mesh AX3000 unit?

It can be interesting to set a static IP for you mesh controller to have an easier access to the Web UI on your network in the Atria Mesh app.
You can also allocate dedicated IP Addresses to the devices connected on your mesh network in the Web UI.

1Case 1: Set up a static IP for the mesh controller in the Atria Mesh App

You must connect to the Wi-Fi of the mesh on your device and open the Atria application.

2Enter your credentials

Enter the username and password (admin/admin) before clicking Sign In.

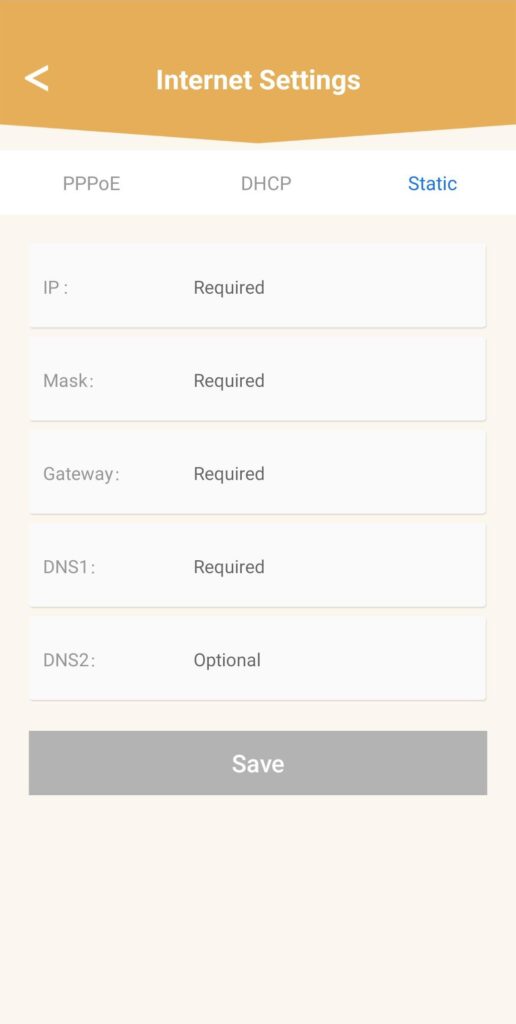

3Internet settings - Static

Click Internet settings and Static. You must enter the following information before clicking Save :
• IP: enter the IP address that you want to assign to the mesh.
• Mask: the field is automatically populated based on the IP address entered before.
• Gateway: the field is automatically populated based on the IP address entered before.
• DNS1: Enter the main DNS address of the service provider of your internet box.
• DNS2: Enter the secondary DNS address of the service provider of your internet box.

1Case 2: Allocate a dedicated IP address to your mesh agents/devices in the Web UI

To do so, enter the SSID (Wi-Fi Network Name) and Wi-Fi password of the router in your device:

2Browse to the Web UI IP Address

Then, enter the following IP address in your browser: 192.168.7.254 or type the following address : http://atria3000.mesh

3Enter your credentials

You must enter the Username (admin) and Password (admin) (please note that after the first connection you will create your personal admin password which means that the password written on the product label will not work any more). Then, click Login.

4IPv4 configuration

Click Network, LAN configuration and IPv4 Configuration.

5Add a IPv4

Click Add in the DHCP Static IP Configuration. Then enter the following information before clicking Save & Apply.

• Select device : select the device name in the list.
• Hostname: the field is automatically populated with the device name.
• MAC Address : the field is automatically populated with the MAC Address of the device.
• IP Address : the field is automatically populated with the static IP Address allocated to the device
