How can I access the Web UI of the different Mesh units?
To access the Web UI of the different mesh units you first need to:

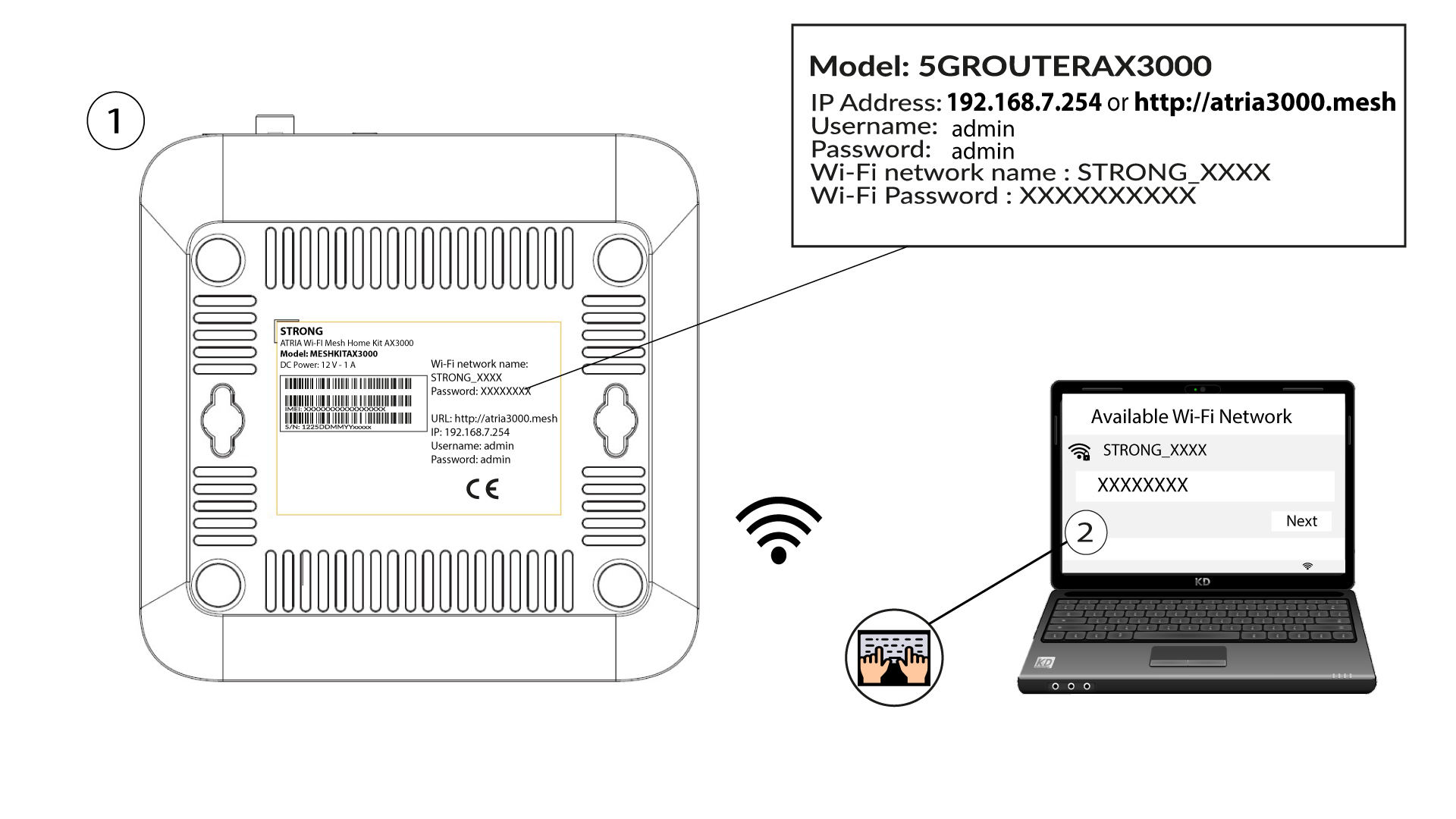

1Connect to the Wi-Fi of the device
To do so, enter the SSID (Wi-Fi Network Name) and Wi-Fi password of the router in your device:
2Browse to the Web UI IP Address
Then, enter the following IP address in your browser: 192.168.7.254 or type the following address : http://atria3000.mesh
3Enter your credentials
You must enter the Username (admin) and Password (admin) (please note that after the first connection you will create your personal admin password which means that the password written on the product label will not work any more). Then, click Login.
4LAN Info
Click Status and LAN Info. Then in the connected device information look for the IP Address of the additional mesh units that are called Agent xxxx.
5Write down the information
Write down the IP address of each Mesh units.
6Secondary Mesh unit IP addresses
Enter the IP address of the mesh unit in your browser.
7Enter your credentials
Then enter the credentials (admin/admin).
Tip: please rename the different mesh units by following this format:
ATRIA MESH MAIN – ROOM NAME
ATRIA MESH – ROOM
