How should I organize my Mesh Network to optimize my Wi-Fi network?
To optimize you coverage you should install the mesh in the location where you have coverage issues in order to cover the widest area possible in your home.
Please make sure that the mesh units are not located in a room where there is a load bearing wall, as the wall is thicker the Wi-Fi signal can have issues getting through it.
1Unoptimized Mesh Installation
The following schema shows Wi-Fi coverage inside a house where mesh nodes are not located in the right area of the house to have a proper coverage.

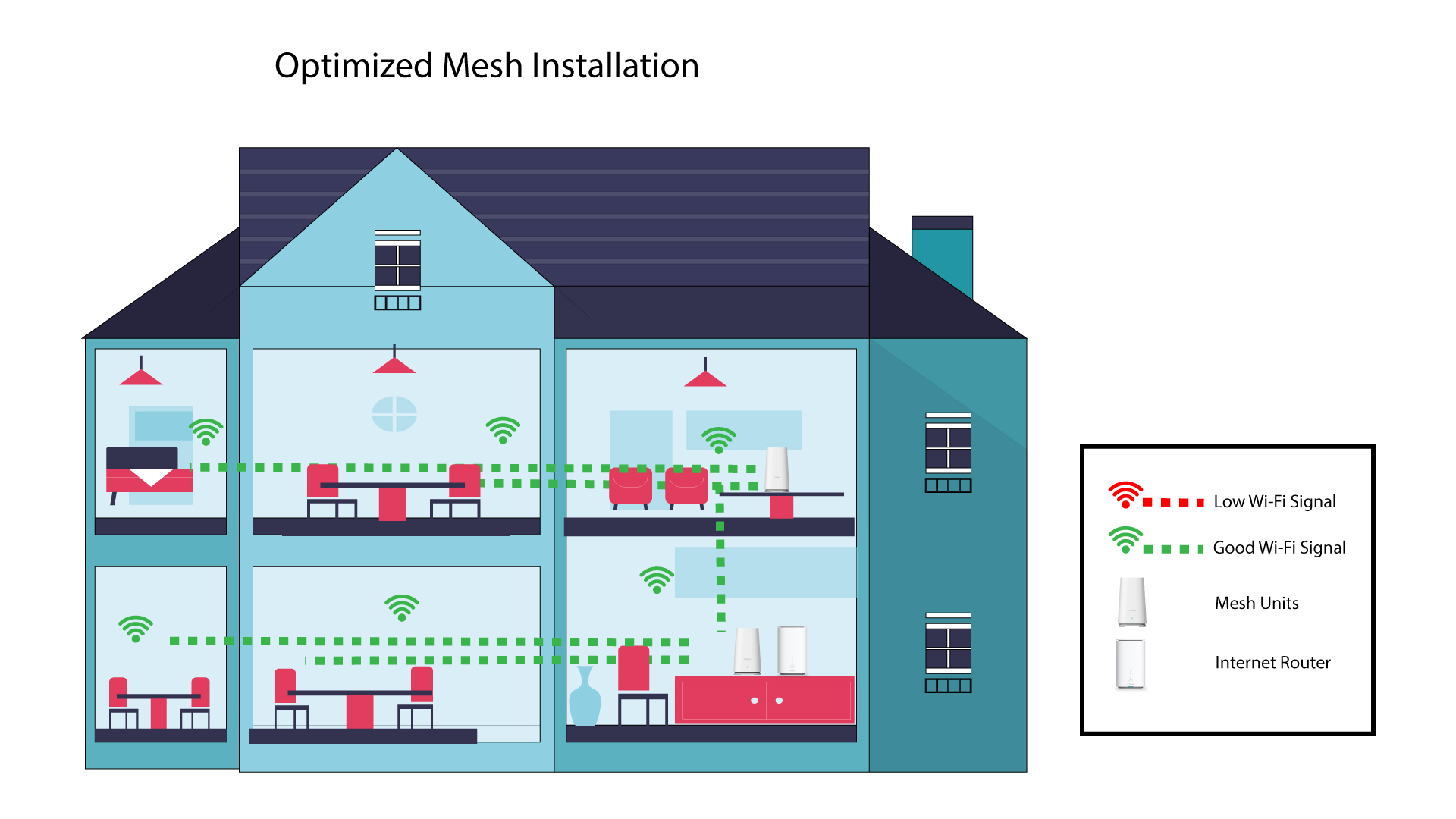

2Optimized Mesh Installation
The following schema shows Wi-Fi coverage inside a house where mesh nodes are located in the right area of the house to have a proper coverage.
1Atria Mesh App
Download the application for smartphone "ATRIA MESH" on the App Store or the Google Play Store.
2Connexion to the Wi-Fi
Connect to the Wi-Fi of your mesh unit.
3Credentials
Then you need to be connected to the Wi-Fi of the Mesh with your smartphone and then login to the app with your credentials that should be "admin" and "admin" if you have not changed it.

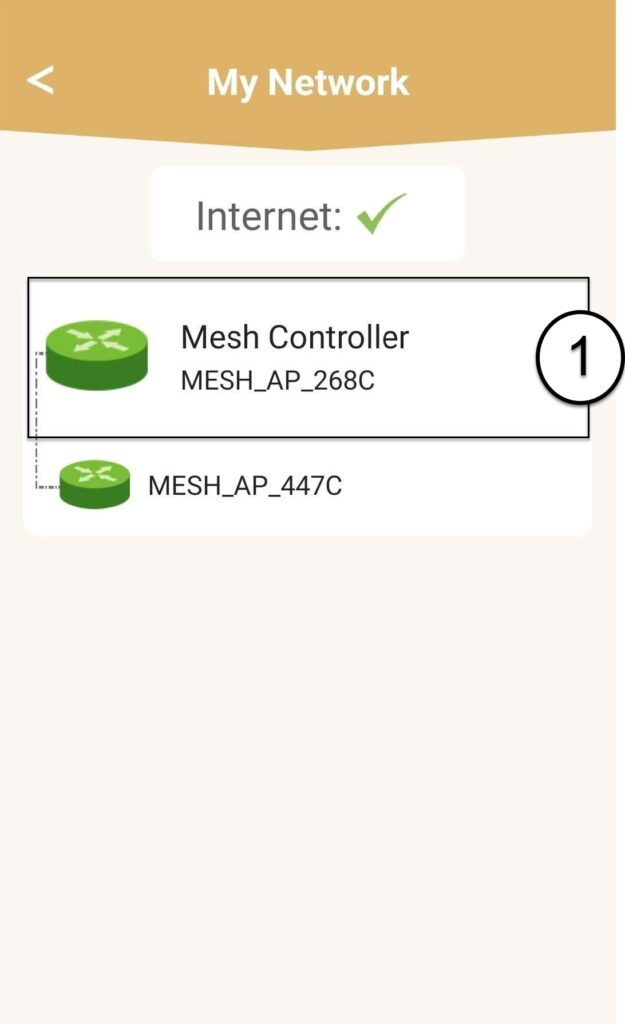

4My Network
Click My Network.
5Name of the Mesh
You will see the name of the mesh units you configured on your network.
Click on the name of the mesh unit to access its information.
6Name
Click on the name field.

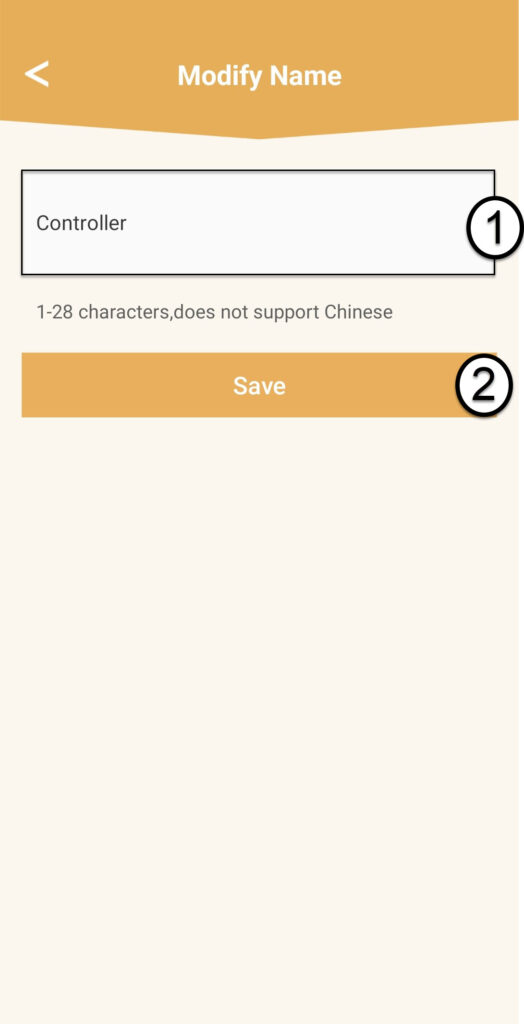

7Change controller name
Enter a new name and click Save:
- The mesh controller should be named like this: MeshAX3000-Main- Nameoftheroom
- The mesh agents should be named like this: MeshAX3000-Nameoftheroom
Warning: If the mesh unit appears in grey it means that it is not providing enough coverage and that you should adjust its location to optimize the mesh network.
