How can I pair my mesh nodes if they are connected to my internet gateway via Ethernet cables?

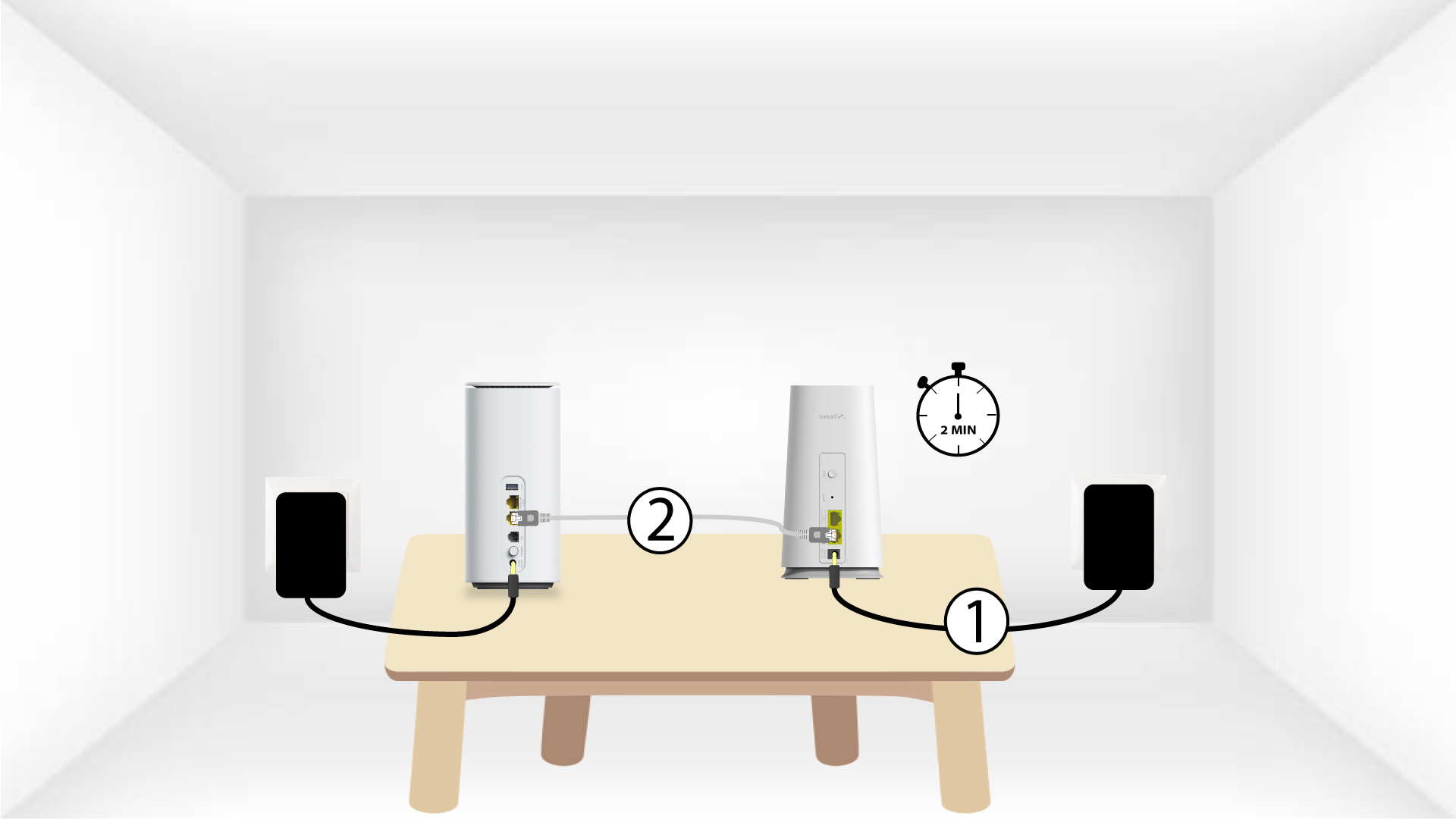

1Main Mesh
You must plug in the mesh unit to turn it on (there is no power button on the device) and connect it to your modem by using a RJ45 cable.

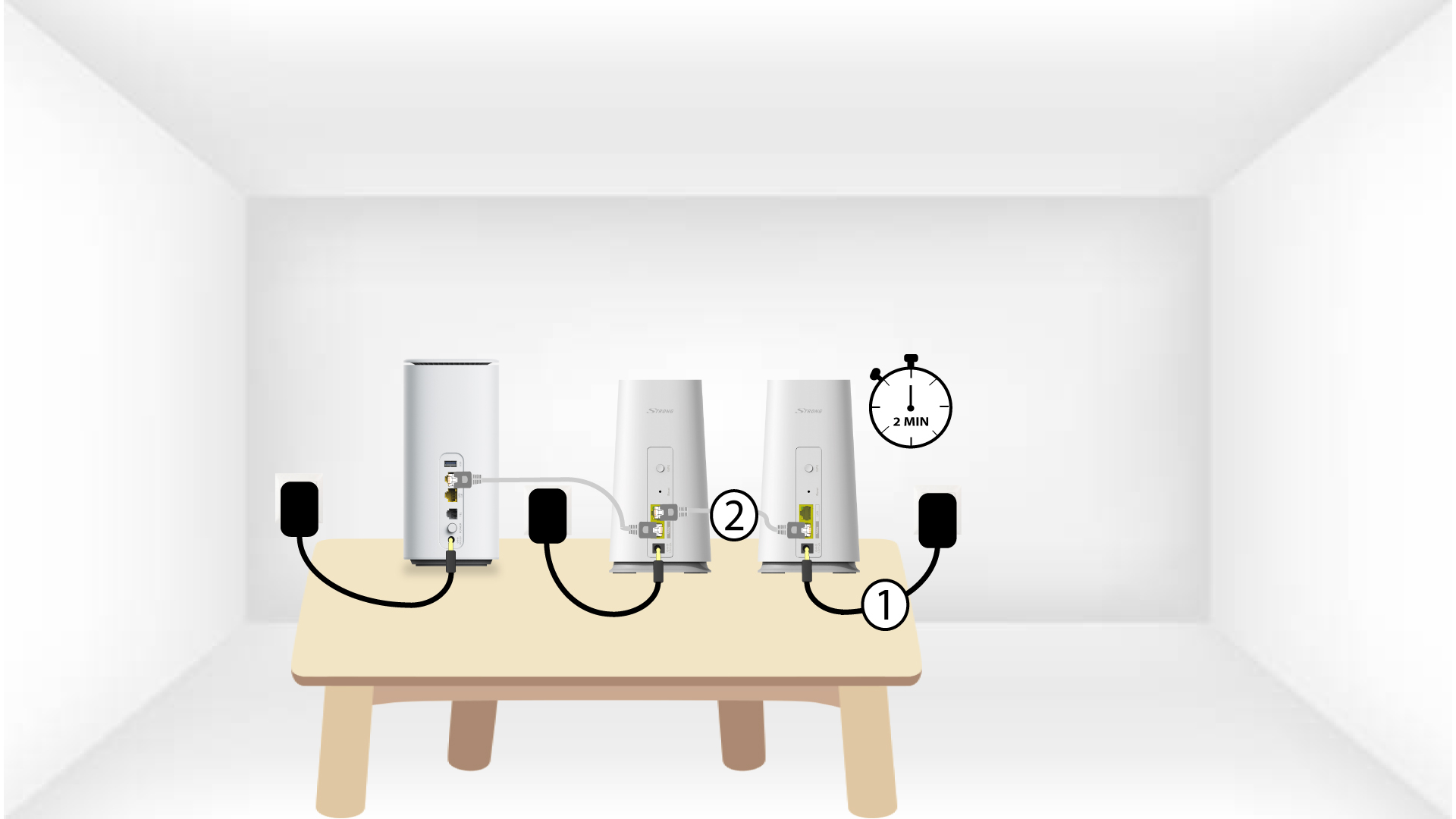

2Second Mesh unit
You must plug in the second mesh unit too turn it on and then connect it to the main mesh unit (LAN port) by using a RJ45 cable.

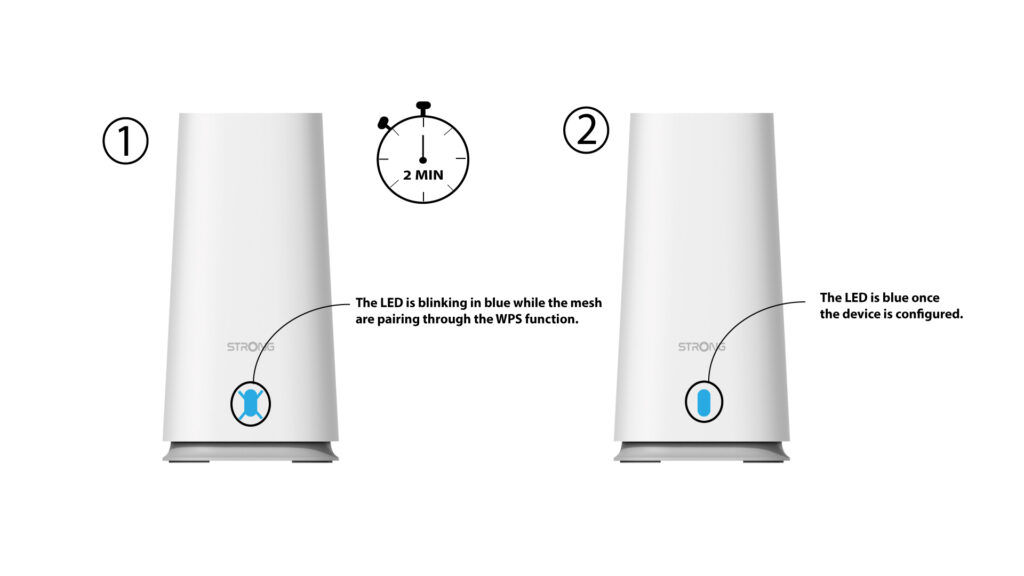

3LED
Wait a few minutes for both mesh units to detect the Internet configuration. Once the LEDs are blue on both devices, they are configured.
Warning: You must remove the RJ45 cable from the seconds mesh unit and unplug it to install it in the room where you want to use it.
